How to Read a 96-Well Plate
Reading a 96-well plate means translating a physical grid of wells into the correct sample identities and values. This guide explains the coordinate system, how to locate any well, and how to map instrument output back to your samples without introducing orientation errors.
Rows versus columns

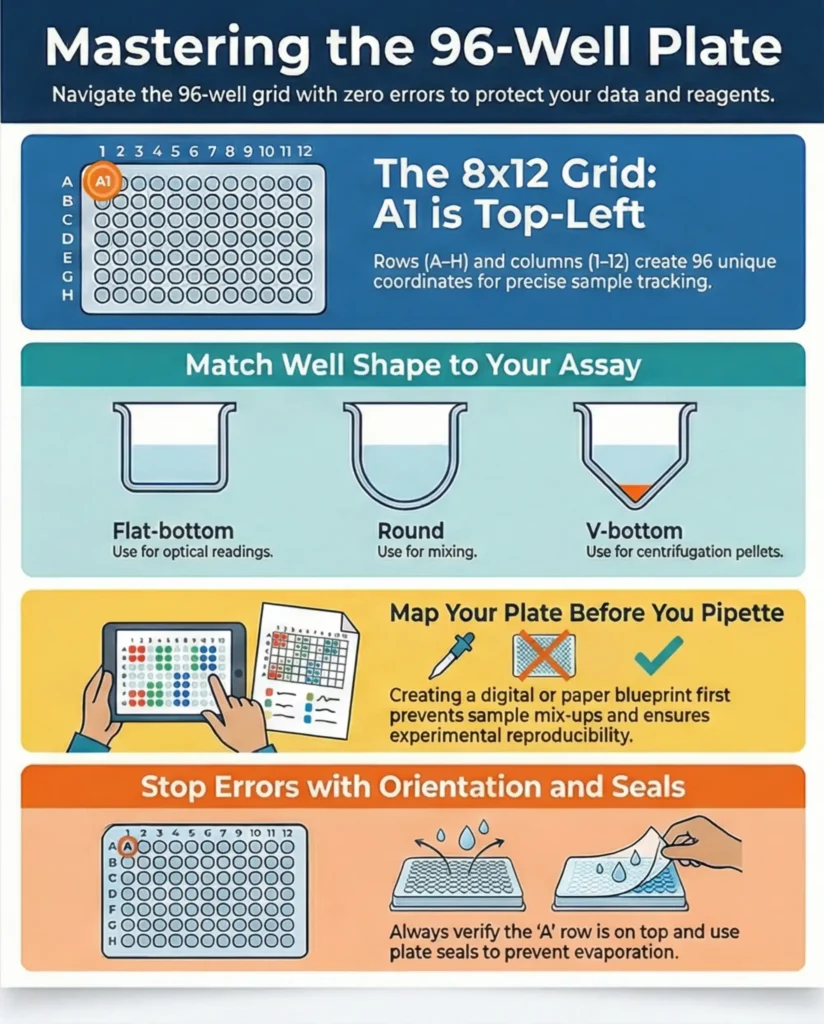

A 96-well plate is an 8×12 arrangement. The eight rows run horizontally and are lettered A at the top through H at the bottom. The twelve columns run vertically and are numbered 1 on the left through 12 on the right. Rows are always letters and columns are always numbers, which removes any ambiguity about which axis a coordinate refers to.
The grid maps onto a fixed geometry: a 127.76×85.48 mm SBS/ANSI footprint with wells on a 9 mm pitch, each about 6.4 mm in diameter and 10.9 mm deep, holding a typical working volume of 100–200 µL. Because rows and columns are evenly spaced, the same coordinate points to the same physical location on any compliant plate. See the dimensions reference for details.
Row-letter-first addressing and locating any well
Well addresses are written row letter first, then column number: A1, B6, H12. This ordering is the standard across plate readers and software, so internalizing it prevents transposition errors. To locate any well, split the address into its two parts and read down then across.
Worked example: find C7:
- Take the letter C: count down from the top row, so A, B, C, the third row.
- Take the number 7: count across from the left, landing on the seventh column.
- The intersection of row C and column 7 is well C7.
The same procedure resolves every one of the 96 positions. A printed plate map or the plate designer grid lets you check yourself visually while you build the habit.
How a plate reader outputs data and how the map connects it
Plate readers report results in one of two shapes, and both are keyed by well address:
- Matrix (grid) format: an 8×12 table mirroring the physical plate, with row labels A–H down the side and column numbers 1–12 across the top. The value in the C row and 7 column is the reading for C7.
- Long (list) format: one row per well, typically a well,value pair such as C7, 0.482, sometimes with wavelength or timestamp columns.
Neither format knows what your samples are. It only knows positions and readings. The plate map is what supplies meaning: it says C7 holds, for example, "Sample 12, replicate 2." Joining the reader output to the map on the well address turns raw numbers into interpretable results. Keeping that join reliable is the heart of managing 96-well plate data.
| Well | Reading | Map identity |
|---|---|---|
| A1 | 0.051 | Blank |
| C7 | 0.482 | Sample 12, rep 2 |
| H12 | 1.204 | High standard |
Reading direction and edge effects
Match your reading direction to how the plate was loaded. Because multichannel pipettes dispense down a column using the plate's 9 mm spacing, plates are usually filled column by column, so reading and analyzing by column keeps samples grouped as intended. Whichever direction you choose, apply it consistently between the map and the output.
Be alert to edge effects on the outer wells: the perimeter row A and H wells and columns 1 and 12. These wells lose more to evaporation and sit at thermal extremes, so their readings can drift relative to interior wells. Many labs leave the outer ring as buffer-only wells or flag edge positions during analysis so a geometry artifact is not mistaken for a real signal.
Upside-down and rotation reading errors
The most damaging reading mistake is orientation error. If a plate is read rotated 180°, the reader still produces a valid-looking 8×12 matrix, but every value lands on the wrong sample: A1 is reported where H12 actually sits, and the whole dataset is mirrored diagonally. Nothing in the numbers reveals this. Only the physical orientation does.
- Always seat the plate with well A1 in the reader's designated A1 position, checking the moulded labels or corner cue.
- Confirm the plate's orientation mark agrees with the map before pressing read.
- If results look transposed or mirrored, suspect a rotated plate before suspecting the samples.
Correct labeling upstream is the best defense; see how to label a 96-well plate for the orientation marking practices that prevent this.
Tips for accurate reading
A few habits keep reads trustworthy:
- Verify the A1 corner and map orientation as a fixed pre-read checklist step.
- Keep controls, blanks, and standards in fixed positions so you can sanity-check them at known addresses on every plate.
- Watch total volume: standard wells hold up to about 360 µL, so overfilled wells can affect optical path length and readings.
- Read and analyze in the same direction the plate was filled to preserve replicate grouping.
- Cross-check a handful of known values against the map before trusting the full dataset.
For broader context on plate formats and uses, see what well plates are used for.
Frequently asked questions
How do you address or identify a specific well on a 96-well plate?
Each well has a coordinate combining its row letter (A–H, top to bottom) and column number (1–12, left to right), so B7 means the second row, seventh column. This 8×12 alphanumeric grid is the universal standard, letting anyone locate the same physical well regardless of instrument or software. Always locate A1 first, because that anchors the entire coordinate system.
How do I quickly locate a single well like G10 by eye?
Count down the row letters on the left edge to G (the seventh row), then across the top numbers to column 10, and follow both to their intersection. Because the wells sit on a regular 9 mm pitch, you can also count wells directly, but using the printed row and column labels on the plate skirt is faster and less error-prone. Confirming A1 first ensures you are counting from the correct starting corner.
What is the difference between matrix and long (list) format in plate reader output?
Matrix format outputs an 8×12 grid that visually mirrors the physical plate, with each cell holding the value for the corresponding well, which is easy to scan by eye. Long or list format gives one row per well with columns for the well address and its value, which is better for merging with sample metadata and importing into databases. Most reader software can export either, and long format is generally preferred for downstream data analysis and joining to plate maps.
How do I join reader values back to my sample identities?
Use the well address (A1 through H12) as the shared key between your plate map and the reader export, matching each measured value to the sample recorded at that coordinate. Converting a matrix export to long format first makes this a simple table join in a spreadsheet or script. The join only works if your plate map used the exact same well-address notation and correct A1 orientation as the instrument.
In which direction does a plate reader scan the wells?
Reading direction varies by instrument and settings, commonly row-wise (A1, A2, A3 across a row) or column-wise (A1, B1, C1 down a column), and some readers offer serpentine or boustrophedon paths. The direction affects the order of values in a raw list export but not the well address assigned to each reading. Always rely on the reported well coordinate rather than assuming a fixed sequence, and check your instrument's read-order setting when interpreting timing-sensitive kinetic data.
What are edge effects and how do they affect reading a plate?
Edge effects are systematic differences in the outermost wells (row A, row H, column 1, column 12) caused by faster evaporation, temperature gradients, and uneven incubation, which can skew absorbance or fluorescence readings. They often make perimeter wells drift higher or lower than interior wells holding identical samples. When reading and interpreting data, flag edge wells, compare them against interior replicates, and consider excluding or correcting affected values.
How can I tell if a plate was read in the wrong orientation?
A rotated plate makes A1 and H12 swap, so a telltale sign is your standard curve or known controls appearing in the mirror-image location, with values landing in unexpected wells. If your positive controls read as blanks and vice versa, the plate was likely inserted 180 degrees off. Prevent this by confirming well A1 is seated in the reader's A1 position and by including an asymmetric control pattern that reveals rotation immediately.
